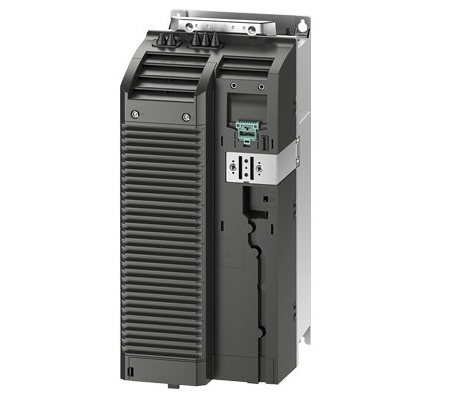

Siemens 6SL3210-1RE27-5UL0 SINAMICS G120 POWER MODULE PM240P-2 UNFILTERED 3AC380-480V + Hız Kontrol Cihazı

Siemens 6SL3210-1RE27-5UL0 SINAMICS G120 POWER MODULE PM240P-2 UNFILTERED 3AC380-480V + Hız Kontrol Cihazı



roductArticle Number (Market Facing Number)6SL3210-1RE27-5UL0Product DescriptionSINAMICS G120 POWER MODULE PM240P-2 UNFILTERED 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 30kW FOR 150% 60S, 100% 240S; AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 37kW FOR 135% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6 HF1Product familyPM240P-2 Power ModulesProduct Lifecycle (PLM)PM300:Active ProductNotes

This product cannot be ordered currently. If you need support please contact your Siemens partner

Price dataHeadquarter Price Group347List PricePrice On RequestUnit Customer PriceShow pricesMetal FactorNoneDelivery informationExport Control RegulationsAL : N / ECCN : 3A999AStandard lead time ex-works10 Day/DaysNet Weight (kg)18,300 KgProduct Dimensions (W x L x H)Not availablePackaging Dimension356,00 x 495,00 x 300,00Package size unit of measureMMQuantity Unit1 PiecePackaging Quantity1Additional Product InformationEAN4042948673416UPC804766373008Commodity Code85044088LKZ_FDB/ CatalogIDD11.1SDProduct Group5678Group CodeR220Country of originGermanyCompliance with the substance restrictions according to RoHS directiveSince: 22.12.2016Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.WEEE (2012/19/EU) Take-Back Obligation-REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Classifications

	Version	Classification
eClass	6	27-02-31-01
eClass	7.1	27-02-31-01
eClass	8	27-02-31-01
eClass	9	27-02-31-01
eClass	9.1	27-02-31-01
ETIM	5	EC001857
ETIM	6	EC001857
ETIM	7	EC001857
IDEA	4	4139
UNSPSC	15	39-12-10-07
