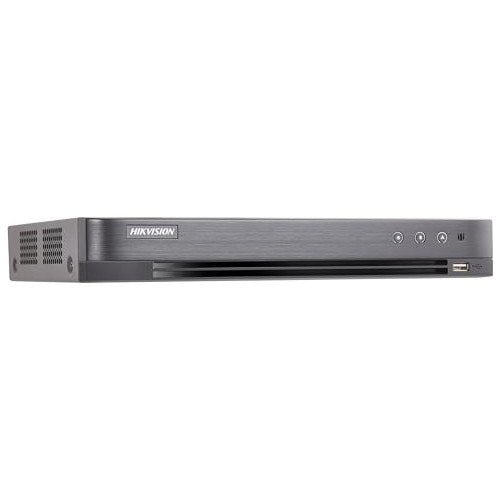

Hikvision DS-7208HQHI-K1 1080P 8 Kanal HD-TVI Kayıt Cihazı
0 - Yorum Yap
Kategori
Marka
GTİN Kodu
6941264022480
Stok Kodu
DFGJRTX2
Garanti Süresi
24 Ay
Piyasa Fiyatı
3.850.00 TL
%14 İndirim
4.500,00 TL
3.850,00 TL
1.056,44 TL den başlayan taksitlerle!
Hikvision DS-7208HQHI-K1 1080P 8 Kanal HD-TVI Kayıt Cihazı
DS-7204/7208/7216HQHI-K1Turbo HD DVR • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• Up to 3 MP resolution for recording
• HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K1
• Long distance transmission over UTP and coaxial cable
• 4/8/16-ch synchronous playback
Video/Audio Input
Audio Input: | 8-ch
Video Compression: | H.265+/H.265/H.264+/H.264
Analo and HD-TVI video input: | 8-ch,BNC interface (1.0Vp-p, 75 ?)connection
Supported camera types: | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input
Video Input Interface: | BNC (1.0 Vp-p, 75?)
Audio Compression: | G.711u
Audio Input Interface: | RCA (2.0 Vp-p, 1 k?)
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 K?), (using the 1st channel of audio input)
Video/Audio Output
CVBS Output: | 1-ch,BNC(1.0Vp-p,75?),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution: | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate: | Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP@15fps
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate: | 32 Kbps-6 Mbps
Stream Type: | Video/Video&Audio
Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 k?) (using the audio input)
Audio Output: | 1-ch RCA(Linear, 1k?)
Audio Bit Rate: | 64kbps
Dual Stream: | Support
Playback Resolution: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback: | 8-ch
Network management
Remote connections: | 128
Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type: | 1 SATA Interface
Capacity: | Up to 6 TB capacity for each disk
External Interface
Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface
USB Interface: | 2 USB 2.0 Interfaces
Serial Interface: | 1; standard RS-485 serial interface, half-duplex
General
Power Supply: | 12 VDC
Consumption: | ? 7.5W(without hard disks)
Working Temperature: | -10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity: | 10% to 90%
Dimensions: | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight: | ? 1.78 kg (3.9 lb)
Garanti Süresi (Ay)24
